無刷驅動器BLD6030A
Brushless driver BLD6030A
產品介紹
feature
采用ARM高速芯片控制,可應用于上位機(PLC或單片機等)PWM，頻率,或模擬量調速,可采用手動調速方式(自帶電位器,也可外接電位器手動調速)過流、過壓、欠壓、堵轉、霍爾信號非法、速度信號輸出.優化控制性能,調試簡單方便。異常信號報警輸出.高速力矩輸出平穩,轉速穩定。
Use ARM high-speed chip control, can be applied to the host computer(PLC or MCU, etc.)PWM, frequency, or analog speed regulation, can use manual speed regulation (with potentiometer,can also be external potentiometer manual speed regulation) over current, over voltage, under voltage, blocked, hall signal , speed signal output. Optimized control performance, easy to debug.Abnormal signal alarm output, High speed torque output is stable,speed is steady.
電機規格
Electricalspecifications
項目 model | 最小 minimum | 典型值 Typical values | 最大值 maximum |
電壓 voltage | 20 | 36 | 60 |
電流 current | 4 | 30 | 60 |
邏輯輸入電流 Logical input current | 10 | 20 | 50 |
霍爾供電電源 Hall power supply | 5 | ||
轉速控制 rotational speed control | 150 | 3000 | 50000 |
外部電位器調速 External potentiometer speed regulation | 10KΩ | ||
環境濕度 ambient humidity | -10°C | +50°C |

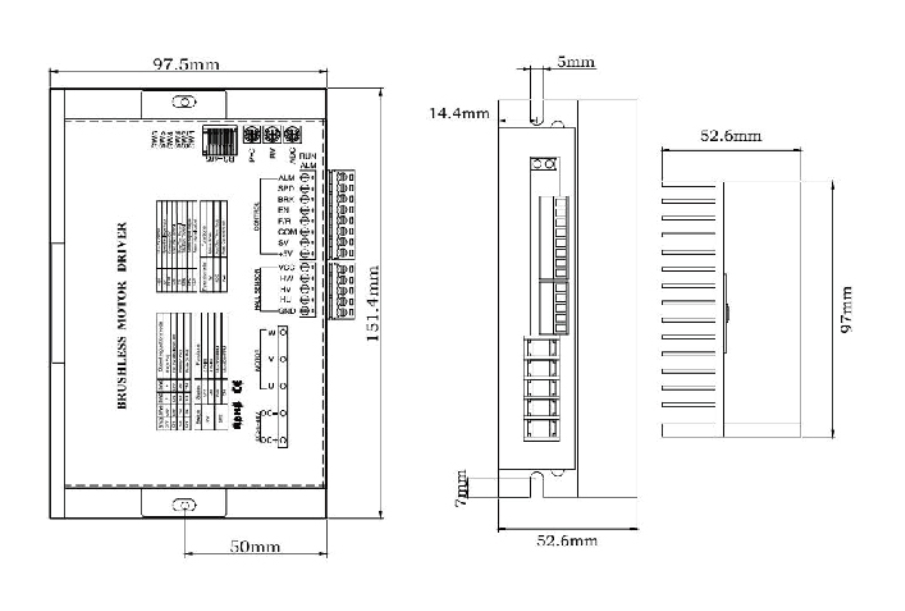

外形尺寸
Dimensions
